首页 > 供应产品 > 缆普LAPP 电缆和电线 控制电缆 1119412

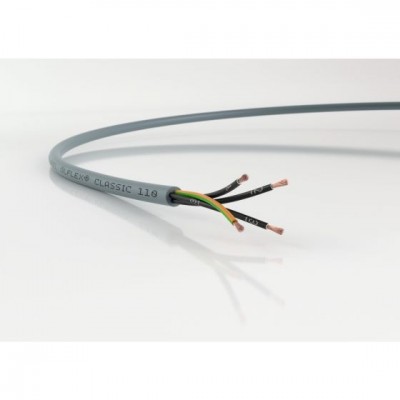

缆普LAPP 电缆和电线 控制电缆 1119412
ÖLFLEX® CLASSIC 110 12G2,5 控制电缆; 12G2.5; 14.8 mm; U0/U: 300 / 500 V; PVC; 芯线识别: 号码; 柔性;(空间)VDE 注册编号: 7030
型号名称: 缆普LAPP 电缆和电线 控制电缆 1119412
浏览次数: 27
产品品牌: 缆普LAPP
产品标签: 缆普 LAPP 电缆和电线 控制电缆 1119412
产品单价: 面议
最小起订量:
供货总量: 电询
发货期限: 自买家付款之日起 3 天内发货
有效期至: 2023-12-19
最后更新: 2022-12-19 14:26

详细信息

优势

  • 145件标准物料,2-100芯,标准长度,可单独切割。

  • 由于壁厚减小,节省空间。

  • 高电气安全性得益于4000 V测试电压。

  • 耐油性符合 DIN EN 50290-2-22 (TM54)。

  • 质量经 VDE 验证。

  • 经测试,耐受 ECOLAB® 消毒剂和洗浄剂。

  • 根据欧盟指令305/2011(BauPVO/CPR)对火灾行为进行分类,物料选型详见www.lappkabel.de/CPR。

应用

  • 通用于跨工厂控制电路和机器内部控制电路的布线。

  • 用于无拉伸应变的固定安装和偶尔弯曲。

  • 电缆结构允许在移动的机械部件和拖链中柔性持续移动使用。

  • 电缆设计适用于风力发电机中的扭转应用。

  • 适用于中等机械应力。

  • 可在干燥或潮湿的空间中使用。

  • 可在最低 -15 °C 的温度下柔性使用。

  • PVC 外护套耐酸和碱。

技术特性

基本信息

产品类型

控制电缆

重量

0.444 kg

铜号

288.000 kg

铜重 (lb)

1935.070 lb

产品设计

电缆尺寸

12G2.5

认证标准

EAC certified


EAC 认证编号

ЕАЭС N RU Д-DE.АЮ64.В.00130/20

产品系列列表

所有物料号来自 ÖLFLEX® CLASSIC 110

物料编号芯线数量包括接地线导体额定横截面 (mm2)额定外径铜号重量
111900330.5 mm²5.1 mm14.400 kg0.042 kg
111900440.5 mm²5.7 mm19.200 kg0.054 kg
111900550.5 mm²6.2 mm24.000 kg0.062 kg
111900770.5 mm²6.7 mm33.600 kg0.081 kg
1119010100.5 mm²8.6 mm48.000 kg0.116 kg
1119012120.5 mm²8.9 mm58.000 kg0.131 kg
1119014140.5 mm²9.5 mm67.000 kg0.147 kg
1119018180.5 mm²10.5 mm86.400 kg0.187 kg
1119021210.5 mm²11.7 mm101.000 kg0.221 kg
1119025250.5 mm²12.4 mm120.000 kg0.261 kg
1119030300.5 mm²13.3 mm144.000 kg0.300 kg
1119035350.5 mm²14.5 mm168.000 kg0.356 kg
1119040400.5 mm²15.4 mm192.000 kg0.400 kg
1119052520.5 mm²17.3 mm250.000 kg0.517 kg
1119061610.5 mm²18.5 mm293.000 kg0.603 kg
1119065650.5 mm²19.6 mm312.000 kg0.644 kg
1119080800.5 mm²21.1 mm384.000 kg0.780 kg
11191001000.5 mm²23.6 mm480.000 kg0.975 kg
111910330.75 mm²5.7 mm21.600 kg0.056 kg
111910440.75 mm²6.2 mm28.800 kg0.066 kg
111910550.75 mm²6.7 mm36.000 kg0.079 kg
111910770.75 mm²7.3 mm50.000 kg0.098 kg
111910990.75 mm²9.4 mm65.000 kg0.137 kg
1119110100.75 mm²9.6 mm72.000 kg0.150 kg
1119112120.75 mm²9.9 mm86.000 kg0.171 kg
1119115150.75 mm²10.9 mm108.000 kg0.209 kg
1119116160.75 mm²11.1 mm115.200 kg0.220 kg
1119117150.75 mm²10.9 mm108.000 kg0.209 kg
1119118180.75 mm²11.7 mm130.000 kg0.244 kg
1119121210.75 mm²13 mm151.000 kg0.286 kg
1119125250.75 mm²13.8 mm180.000 kg0.337 kg
1119126260.75 mm²14.2 mm187.200 kg0.350 kg
1119134340.75 mm²15.9 mm245.000 kg0.448 kg
1119141410.75 mm²17.4 mm296.000 kg0.538 kg
1119150500.75 mm²19.2 mm360.000 kg0.648 kg
1119151510.75 mm²19.2 mm367.000 kg0.646 kg
1119161610.75 mm²20.5 mm439.000 kg0.779 kg
1119165650.75 mm²21.8 mm468.000 kg0.832 kg
1119180800.75 mm²23.6 mm576.000 kg1.019 kg
11192001000.75 mm²26.4 mm718.000 kg1.271 kg
111920331 mm²6 mm28.800 kg0.064 kg
111920441 mm²6.5 mm38.400 kg0.079 kg
111920551 mm²7.1 mm48.000 kg0.094 kg
111920661 mm²8 mm58.000 kg0.113 kg
111920771 mm²8 mm67.000 kg0.126 kg
111920881 mm²9.5 mm77.000 kg0.156 kg
111920991 mm²10 mm86.000 kg0.164 kg
1119210101 mm²10.2 mm96.000 kg0.180 kg
1119212121 mm²10.5 mm115.000 kg0.205 kg
1119214141 mm²11.2 mm134.000 kg0.238 kg
1119216161 mm²11.8 mm153.600 kg0.266 kg
1119218181 mm²12.7 mm173.000 kg0.290 kg
1119220201 mm²13.4 mm192.000 kg0.330 kg
1119225251 mm²14.7 mm240.000 kg0.390 kg
1119226261 mm²15.1 mm249.000 kg0.424 kg
1119234341 mm²17.1 mm326.000 kg0.551 kg
1119236361 mm²17.4 mm346.000 kg0.578 kg
1119241411 mm²18.8 mm394.000 kg0.661 kg
1119250501 mm²20.6 mm480.000 kg0.797 kg
1119256561 mm²21.4 mm538.000 kg0.888 kg
1119261611 mm²22.1 mm586.000 kg0.958 kg
1119265651 mm²23.6 mm624.000 kg1.033 kg
1119280801 mm²25.3 mm768.000 kg1.251 kg
11193001001 mm²28.3 mm960.000 kg1.560 kg
111930331.5 mm²6.7 mm43.000 kg0.083 kg
111930441.5 mm²7.2 mm58.000 kg0.098 kg
111930551.5 mm²8.1 mm72.000 kg0.128 kg
111930661.5 mm²8.9 mm86.400 kg0.157 kg
111930771.5 mm²8.9 mm101.000 kg0.166 kg
111930881.5 mm²10.6 mm115.000 kg0.210 kg
111930991.5 mm²11.4 mm130.000 kg0.233 kg
1119310101.5 mm²11.6 mm143.000 kg0.243 kg
1119311111.5 mm²11.6 mm158.000 kg0.279 kg
1119312121.5 mm²12 mm173.000 kg0.279 kg
111931381.5 mm²10.6 mm116.000 kg0.210 kg
1119314141.5 mm²12.7 mm202.000 kg0.300 kg
1119316161.5 mm²13.4 mm230.400 kg0.361 kg
1119318181.5 mm²14.4 mm259.000 kg0.407 kg
1119321211.5 mm²15.7 mm302.000 kg0.469 kg
1119325251.5 mm²16.9 mm360.000 kg0.560 kg
1119326261.5 mm²17.3 mm374.400 kg0.582 kg
1119332321.5 mm²18.7 mm461.000 kg0.704 kg
1119334341.5 mm²19.4 mm490.000 kg0.746 kg
1119341411.5 mm²21.3 mm591.000 kg0.895 kg
1119350501.5 mm²23.5 mm720.000 kg1.089 kg
1119361611.5 mm²25.2 mm878.000 kg1.309 kg
1119365651.5 mm²26.7 mm936.000 kg1.398 kg
111940332.5 mm²8.1 mm72.000 kg0.132 kg
111940442.5 mm²8.9 mm96.000 kg0.163 kg
111940552.5 mm²10 mm120.000 kg0.200 kg
111940772.5 mm²11.1 mm168.000 kg0.267 kg
1119412122.5 mm²14.8 mm288.000 kg0.444 kg
1119414142.5 mm²15.8 mm336.000 kg0.515 kg
1119418182.5 mm²17.8 mm432.000 kg0.648 kg
1119425252.5 mm²20.8 mm600.000 kg0.890 kg
1119434342.5 mm²24.4 mm816.000 kg1.208 kg
1119450502.5 mm²29.4 mm1200.000 kg1.644 kg
111950334 mm²9.9 mm115.000 kg0.201 kg
111950444 mm²10.8 mm154.000 kg0.263 kg
111950554 mm²12.1 mm192.000 kg0.315 kg
111950774 mm²13.4 mm269.000 kg0.407 kg
1119511114 mm²17.6 mm422.000 kg0.634 kg
1119512124 mm²18.1 mm461.000 kg0.660 kg
111960336 mm²11.7 mm172.800 kg0.289 kg
111960446 mm²13 mm230.000 kg0.352 kg
111960556 mm²14.5 mm288.000 kg0.470 kg
111960776 mm²16 mm403.000 kg0.600 kg
1119613310 mm²14.6 mm288.000 kg0.466 kg
1119614410 mm²16.2 mm384.000 kg0.590 kg
1119615510 mm²18.1 mm480.000 kg0.722 kg
1119617710 mm²20 mm672.000 kg0.968 kg
1119624416 mm²18.8 mm614.000 kg0.870 kg
1119625516 mm²21.2 mm768.000 kg1.110 kg
1119627716 mm²23.4 mm1075.000 kg1.470 kg
1119634425 mm²23.5 mm960.000 kg1.350 kg
1119635525 mm²26.4 mm1200.000 kg1.720 kg
1119636725 mm²29.1 mm1680.000 kg2.300 kg
1119644435 mm²26.4 mm1344.000 kg2.106 kg
1119645535 mm²29.6 mm1680.000 kg2.320 kg
111975220.5 mm²4.8 mm9.600 kg0.035 kg
111975330.5 mm²5.1 mm14.400 kg0.042 kg
111975440.5 mm²5.7 mm19.200 kg0.054 kg
111975550.5 mm²6.2 mm24.000 kg0.063 kg
111975770.5 mm²6.7 mm33.600 kg0.081 kg
111980220.75 mm²5.4 mm14.400 kg0.045 kg
111980330.75 mm²5.7 mm21.600 kg0.057 kg
111980440.75 mm²6.2 mm28.800 kg0.066 kg
111980550.75 mm²6.7 mm36.000 kg0.081 kg
111980770.75 mm²7.3 mm50.000 kg0.101 kg
1119812120.75 mm²9.9 mm86.000 kg0.171 kg
111985221 mm²5.7 mm19.200 kg0.053 kg
111985331 mm²6 mm28.800 kg0.065 kg
111985441 mm²6.5 mm38.400 kg0.079 kg
111985551 mm²7.1 mm48.000 kg0.094 kg
111985771 mm²8 mm67.000 kg0.126 kg
1119862121 mm²10.5 mm115.000 kg0.205 kg
1119868181 mm²12.7 mm173.000 kg0.300 kg
1119870201 mm²13.4 mm192.000 kg0.330 kg
111990221.5 mm²6.3 mm29.000 kg0.063 kg
111990331.5 mm²6.7 mm43.000 kg0.084 kg
111990441.5 mm²7.2 mm58.000 kg0.104 kg
111990551.5 mm²8.1 mm72.000 kg0.128 kg
111990771.5 mm²8.9 mm101.000 kg0.166 kg
1119912121.5 mm²12 mm173.000 kg0.279 kg
111995222.5 mm²7.5 mm48.000 kg0.100 kg
